Front Power Window Motor

  1. Disconnect the negative (-) battery terminal.
  2. Remove the front door trim.

    (Refer to Body - "FRONT DOOR TRIM ")

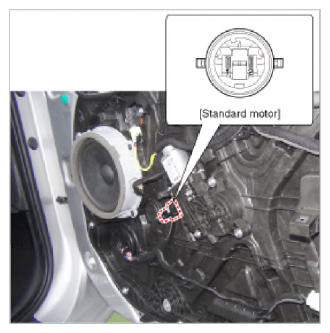

  3. Disconnect the motor connector from the motor.
    G13035836Courtesy of HYUNDAI MOTOR AMERICA
  4. Connect the motor terminals directly to battery voltage (12V) and check that the motor operates smoothly. Next, reverse the polarity and check that the motor operates smoothly in the reverse direction. If the operation is abnormal, replace the motor.

    [Standard Window Motor]

    G13035837Courtesy of HYUNDAI MOTOR AMERICA
