Front Door Lock Module Inspection
- Remove the front door trim.
(Refer to Body - "FRONT DOOR TRIM ")
- Remove the front door module.
(Refer to Body - "FRONT DOOR MODULE ")

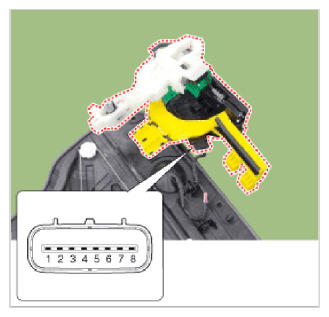

- Disconnect the connector from the actuator.

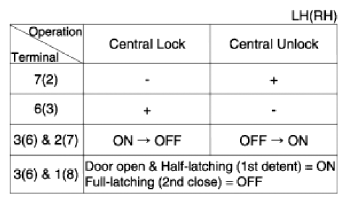

No Pin Information LH RH 1 AJAR Switch - 2 Lock/UnLock switch Motor 1 3 COM Motor 2 4 Key Lock switch Key Unlock switch 5 Key Unlock switch Key Lock switch 6 Motor 2 COM 7 Motor 1 Lock/UnLock switch 8 - AJAR switch - Check actuator operation by connecting power and ground as shown below. To prevent damage to the actuator, apply battery voltage only momentarily.
