Repair Procedures: Installation

CAUTION:
  • When you need calibration
  • Replace MFC with a new one
  • MFC is removed and mounted
  • Windshield glass changed
  • MFC coupler of the windshield glass is deformed

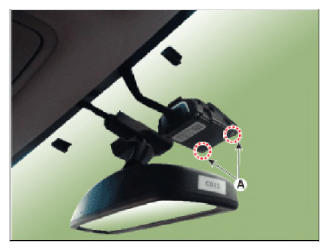

  1. Align the reference point at alignment point (A) and align MFC.
    G13036034Courtesy of HYUNDAI MOTOR AMERICA

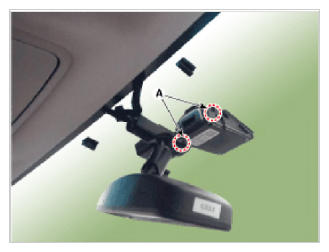

  2. Apply force to lock position (A) to complete mounting.
    G13036035Courtesy of HYUNDAI MOTOR AMERICA
    NOTE:
    • Fully assembly so that you can hear a 'clicking' sound when assembling.
  3. Connect the MFC unit connector.
  4. Install the MFC cover.
  5. Connect the negative (-) battery terminal.
