Repair Procedures: Removal

WARNING: This page is about a different variant/trim than selected.

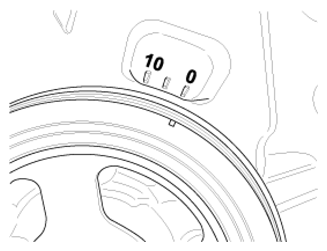

  1. Turn the crankshaft pulley clockwise, and align its groove with the timing mark of the timing chain cover.
    G12971292Courtesy of HYUNDAI MOTOR AMERICA
  2. Remove the timing chain cover.

    (Refer to Timing System - "TIMING CHAIN COVER ")

  3. Align the timing marks of the CVVT sprockets with the upper surface of the cylinder head to make No. 1 cylinder be positioned at TDC.
    CAUTION:
    • Check the dowel pin of the crankshaft for facing upside of the engine at this moment.
    G12971293Courtesy of HYUNDAI MOTOR AMERICA

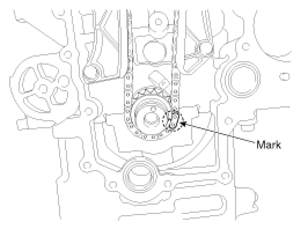

    G12971294Courtesy of HYUNDAI MOTOR AMERICA
  4. Remove the timing chain (A).
    G12971295Courtesy of HYUNDAI MOTOR AMERICA
    CAUTION:
    • Before removing the tensioner, fix the piston of the tensioner with a pin through the hole (B) at compressed position.
  5. Remove the timing chain tensioner arm (A) and guide (B).
    G12971296Courtesy of HYUNDAI MOTOR AMERICA
  6. Remove the timing chain (A).
    G12971297Courtesy of HYUNDAI MOTOR AMERICA
