Repair Procedures: Removal

  1. Turn ignition switch OFF and disconnect the battery negative (-) terminal.
  2. Remove the engine cover.

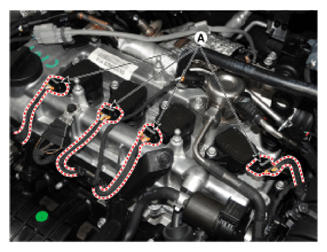

  3. Disconnect the ignition coil connector (A).
    G12976831Courtesy of HYUNDAI MOTOR AMERICA

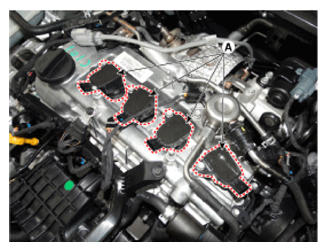

  4. Remove the ignition coil (A) after loosening the mounting bolt.
G12976832Courtesy of HYUNDAI MOTOR AMERICA
NOTE:
  • When removing the ignition coil connector, pull the lock pin (A) and push the clip (B).
G12976833Courtesy of HYUNDAI MOTOR AMERICA
