Repair Procedures: Removal

  1. Turn the ignition switch OFF and disconnect the battery negative (-) terminal.
  2. Remove the floor console upper cover.

    (Refer to Body - "FLOOR CONSOLE ASSEMBLY ")

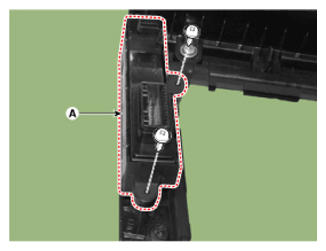

  3. Remove the ISG OFF switch (A) after loosening the mounting screws.
G12977225Courtesy of HYUNDAI MOTOR AMERICA
