Home >> Hyundai >> 2019 >> Elantra Eco >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Idle Stop & Go (ISG) System >> Description And Operation >> Operation

Description And Operation: Operation

How To Use:

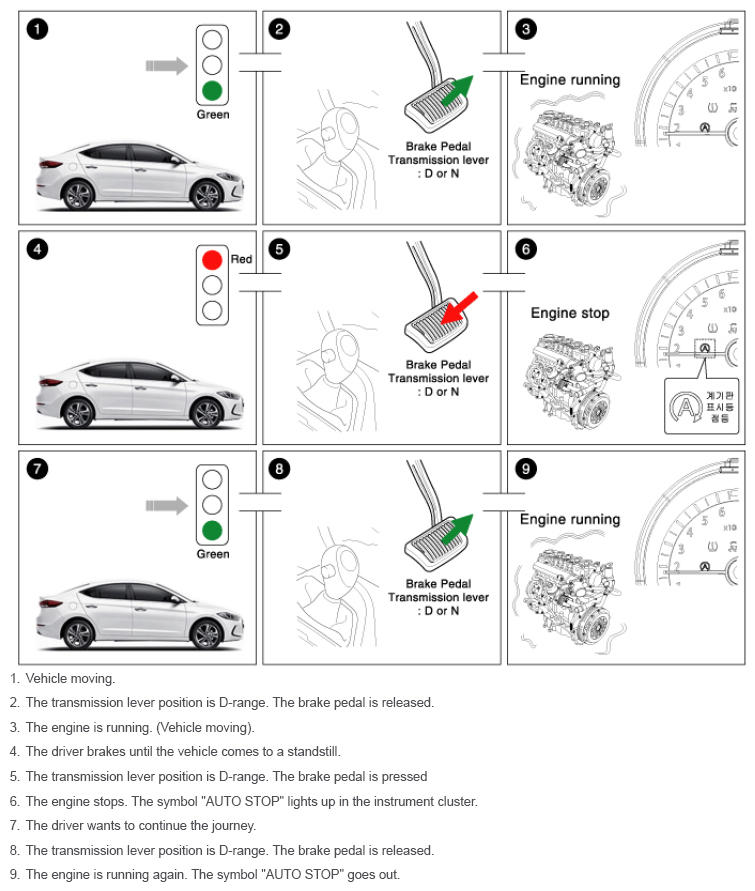

  1. Engine Auto-Stop: D-range + brake pedal is pressed.
    G12977149Courtesy of HYUNDAI MOTOR AMERICA

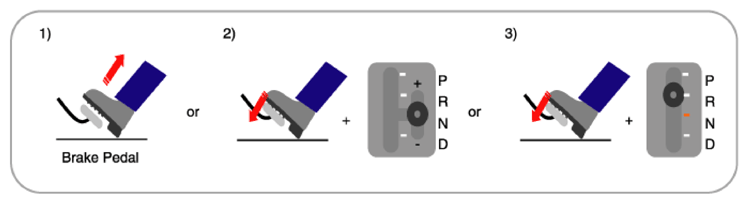

  2. Engine Auto-Start
    1. Brake pedal is released.
    2. Brake pedal is pressed + Manual range (Sports mode)
    3. Brake pedal is pressed + R range
G12977150Courtesy of HYUNDAI MOTOR AMERICA
G12977151Courtesy of HYUNDAI MOTOR AMERICA
