Repair Procedures: Removal: [400W]
- Turn the ignition switch OFF and disconnect the battery negative (-) terminal.
- Remove the luggage side trim.
(Refer to Body - "LUGGAGE SIDE TRIM ")

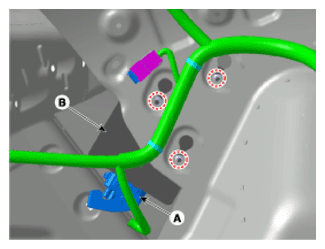

- Disconnect the DC/DC converter connector (A).
- Remove the DC/DC converter (B) after removing the nuts.
