Components Location

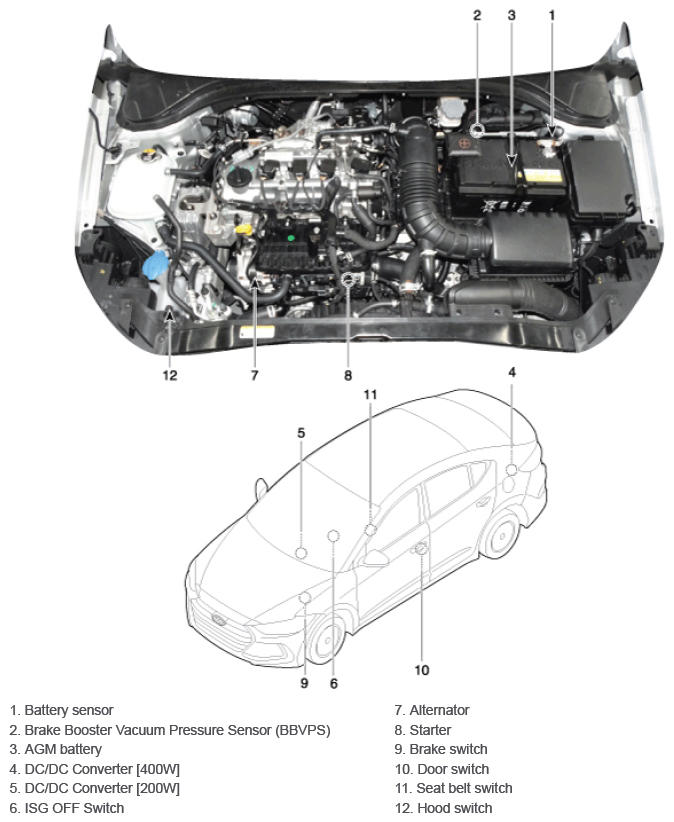

G12977146Courtesy of HYUNDAI MOTOR AMERICA

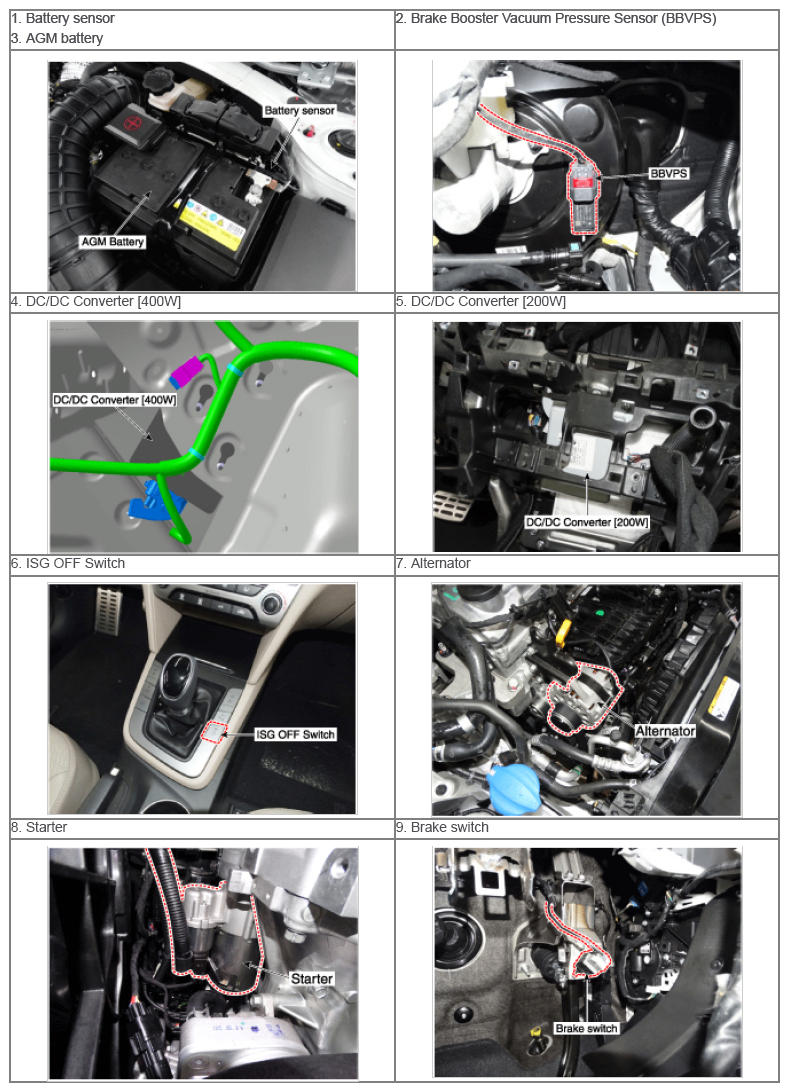

G12977147Courtesy of HYUNDAI MOTOR AMERICA

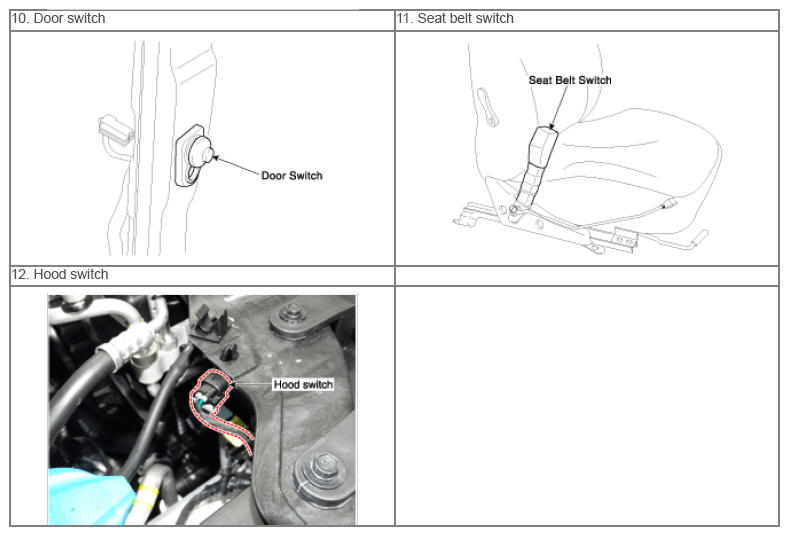

G12977148Courtesy of HYUNDAI MOTOR AMERICA
