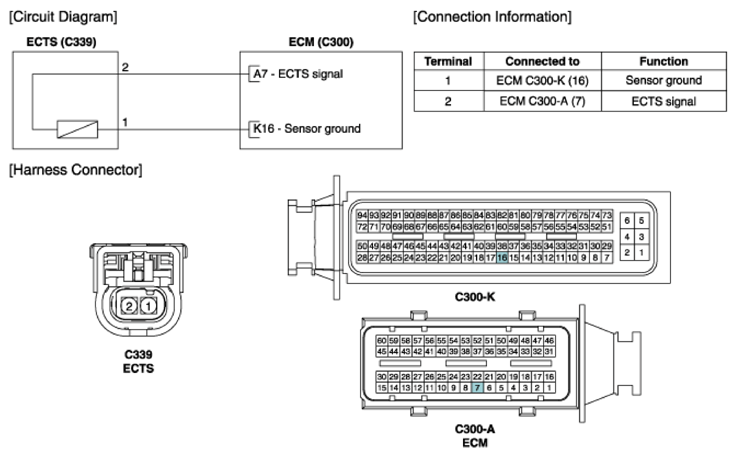

Home >> Hyundai >> 2019 >> Elantra Eco >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System - 1.4L >> Engine Coolant Temperature Sensor (ECTS) >> Schematic Diagram >> Circuit Diagram
