Components And Components Location: Components

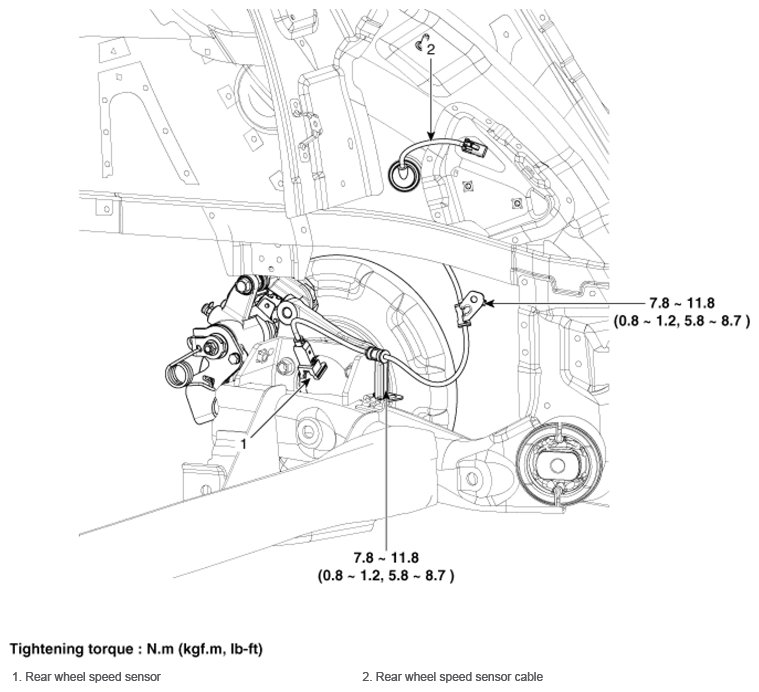

[Torsion Beam Axle Type]

Fig 1: Locating Rear Wheel Speed Sensor Components With Torque Specification
G12973506Courtesy of HYUNDAI MOTOR AMERICA

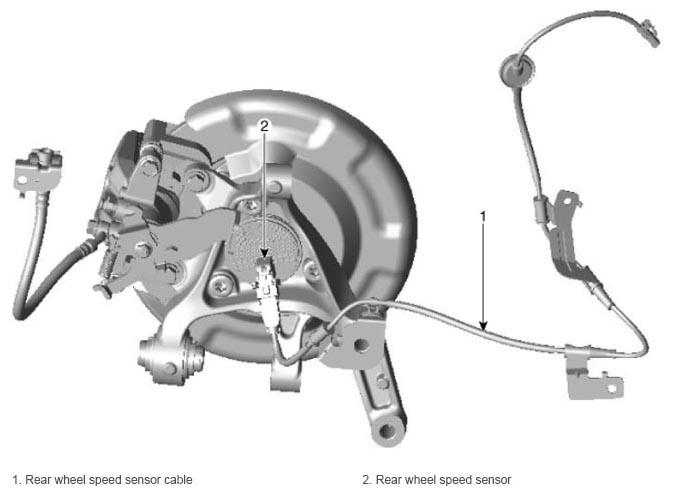

[Multi Link]

G12973507Courtesy of HYUNDAI MOTOR AMERICA
