Home >> Hyundai >> 2019 >> Accent SE, Automatic Trans >> Repair and Diagnosis >> Engine Mechanical >> Mechanical >> Cylinder Block >> Cylinder Block >> Components And Components Location >> Components

Components And Components Location: Components

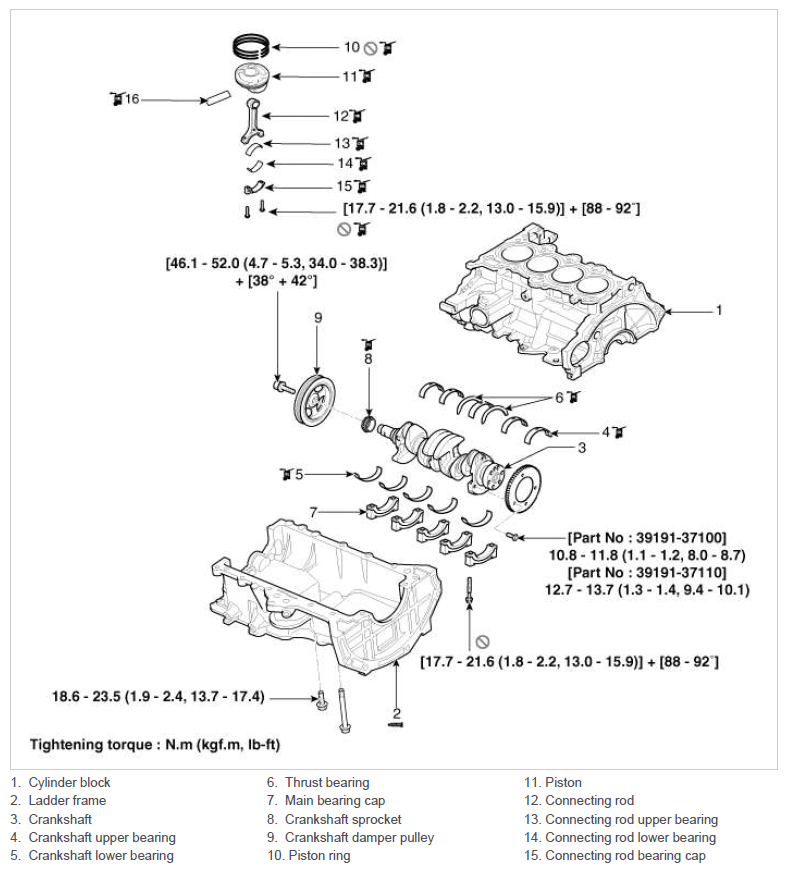

Fig 1: Cylinder Block Components With Torque Specification

G12594351

Courtesy of HYUNDAI MOTOR AMERICA
