Transaxle Mounting Bracket

  1. Remove the air duct and air cleaner assembly.

    (Refer to Intake and Exhaust System - "AIR CLEANER ")

  2. Remove the battery.

    (Refer to Engine Electrical System - "BATTERY ")

  3. Remove the engine control module (ECM).

    (Refer to Engine Control/Fuel System - "ENGINE CONTROL MODULE (ECM) ")

  4. Remove the battery tray.

    (Refer to Engine Electrical System - "BATTERY ")

  5. Remove the engine room under cover.

    (Refer to Engine And Transaxle Assembly - "ENGINE ROOM UNDER COVER ")

  6. Install the jack under the transaxle to support it.

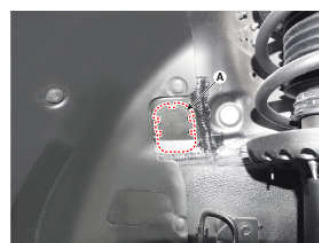

  7. Remove the service cover (A).
    G12594119Courtesy of HYUNDAI MOTOR AMERICA

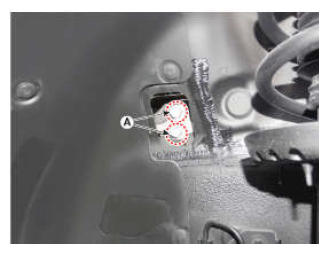

  8. Remove the transaxle mounting bracket bolts (A).

    Tightening Torque:

    88.3 - 107.9 N.m (9.0 - 11.0 kgf.m, 65.1 - 79.6 lb-ft)

    G12594120Courtesy of HYUNDAI MOTOR AMERICA

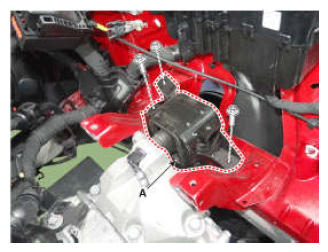

  9. Remove the transaxle mounting bracket (A).

    Tightening Torque:

    49.0 - 63.7 N.m (5.0 - 6.5 kgf.m, 36.2 - 47.0 lb-ft)

    G12594121Courtesy of HYUNDAI MOTOR AMERICA
  10. Install in the reverse order of removal.
