ATF Level Check
NOTE:
- A check of ATF level is not normally required during scheduled services. If an ATF leak is found, perform the ATF level check procedure after repairs are completed.
CAUTION:
- When checking the oil level, be careful not to enter dust, foreign matters, etc. from fill hole.
- Remove the air cleaner assembly and air duct.
(Refer to Engine Mechanical System - "AIR CLEANER ")

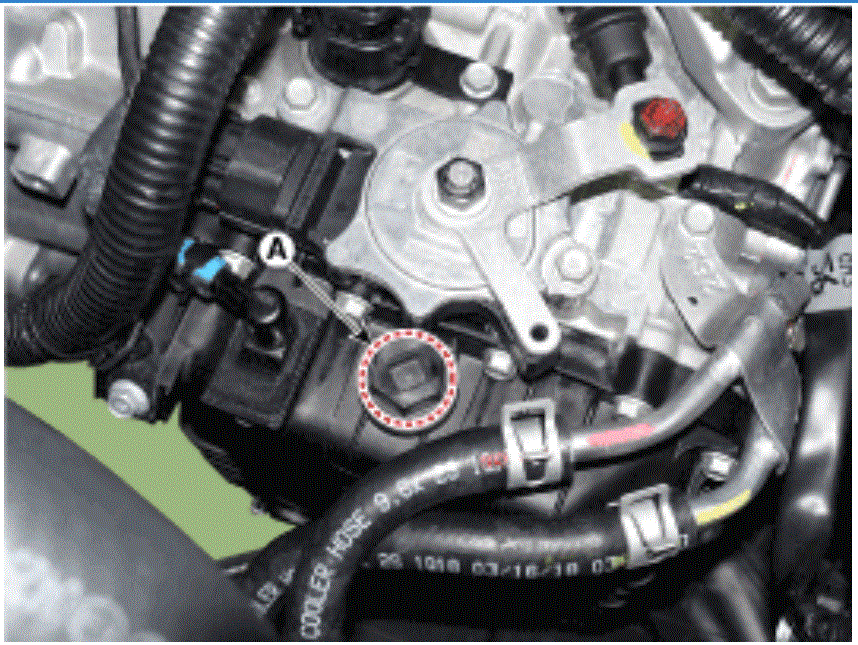

- Remove the eyebolt (A).
- Add ATF SP-IV 700cc to the ATF injection hole (A).
- Install the air cleaner assembly and air duct.
(Refer to Engine Mechanical System - "AIR CLEANER ")
- Start the engine.
(Don't step on brake and accelerator simultaneously.)
- Confirm that the temperature of the automatic transaxle oil temperature sensor is 50 - 60°C (122 - 140°F) with the GDS.
- Shift the select lever slowly from "P" to "D", then "D" to "P" and repeat one more at idle.CAUTION:
- Pause at each gear position more than 2 seconds.
- Lift the vehicle, then remove the under cover.
(Refer to Engine Mechanical System - "ENGINE ROOM UNDER COVER ")

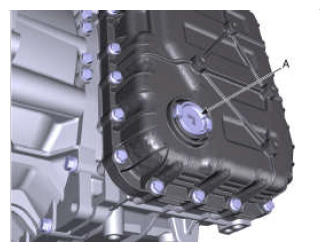

- Remove the ATF level check plug (A) from the valve body cover.CAUTION:
- At this time, the vehicle must be at a level state.
- If the ATF flows out of the overflow plug in thin steady stream, the ATF level is correct. Then finish the procedure and tighten the ATF level check plug.NOTE: Oil level check (excess or shortage) method
- Excess: Drain quantity exceed 900cc for tow minutes. {50 - 60°C (122 - 140°F)}
- Shortage: No ATF flows out of the overflow plug.
CAUTION:- Replace the gasket before reinstalling the ATF level check plug.
- Turn the oil level check plug clockwise until it is set.
- If there is no damage at the automatic transaxle and the ATF cooler, the ATF cooler hose, transaxle case, valve body tightening state are normal, ATF must drip out after performing above 1 to 7 procedures. After performing above 1 to 7 procedures, if the oil doesn't drip out, inspect the automatic transaxle assembly.
- Install the under cover.
(Refer to Engine Mechanical System - "ENGINE ROOM UNDER COVER ")
- Put down the vehicle with the lift and then tighten the eyebolt.
