Components Location

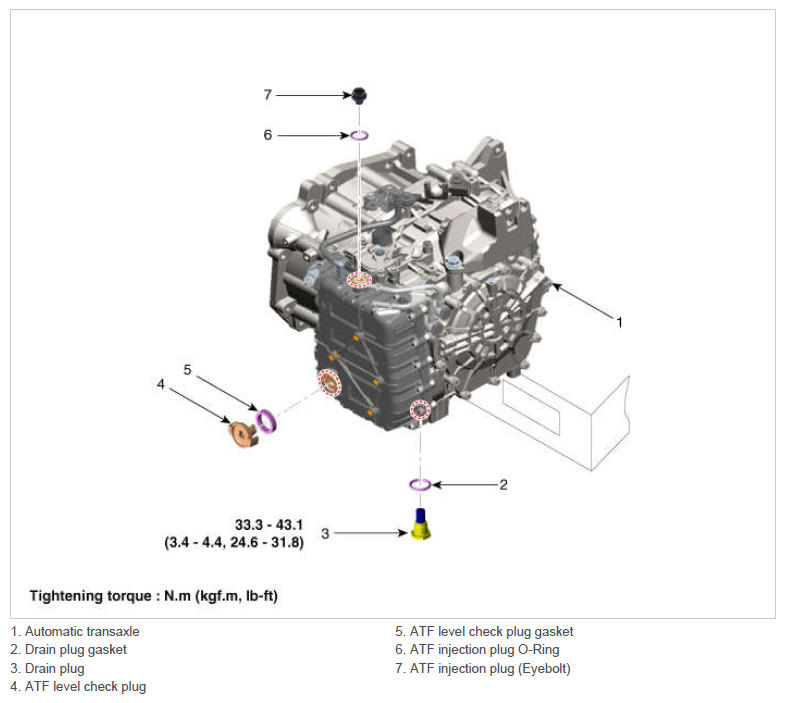

Fig 1: Locating Automatic Transaxle Fluid Components With Torque Specification

G12598785

Courtesy of HYUNDAI MOTOR AMERICA
