Inspect Spark Plug

Remove the ignition coils (A).

Courtesy of HYUNDAI MOTOR AMERICA

NOTE:

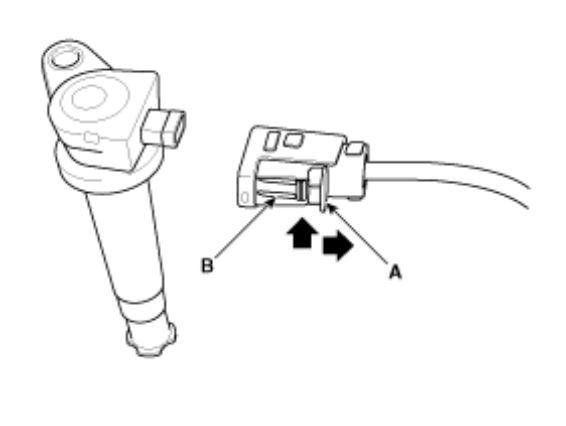

When removing the ignition coil connector, pull the lock pin (A) and push the clip (B).

Courtesy of HYUNDAI MOTOR AMERICA

Using a spark plug socket, remove the spark plug.
CAUTION:
- Be careful that no contaminates enter through the spark plug holes.

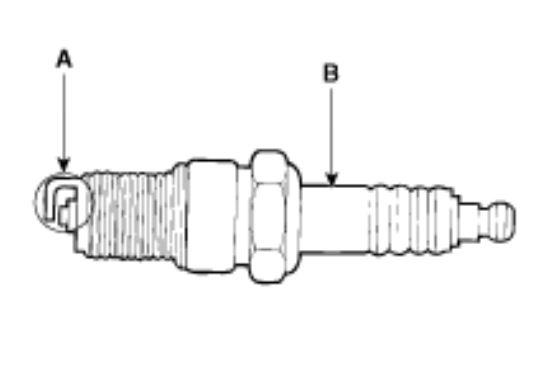

Inspect the electrodes (A) and ceramic insulator (B).

Courtesy of HYUNDAI MOTOR AMERICA

Inspection Of Electrodes

Condition	Dark Deposits	White Deposits
Description	Fuel mixture too rich Low air intake	Fuel mixture too lean Advanced ignition timing Insufficient plug tightening torque

Courtesy of HYUNDAI MOTOR AMERICA
