Repair Procedures: Removal

  1. Release the residual pressure in fuel line.

    (Refer to Fuel Delivery System - "RELEASE RESIDUAL PRESSURE IN FUEL LINE ")

  2. Remove the rear seat.

    (Refer to Body - "REAR SEAT ASSEMBLY ")

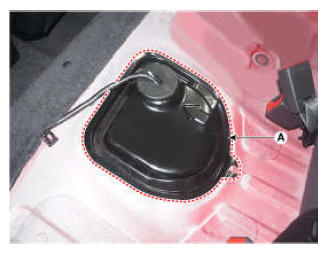

  3. Remove the fuel pump service cover (A).
    G12598592Courtesy of HYUNDAI MOTOR AMERICA

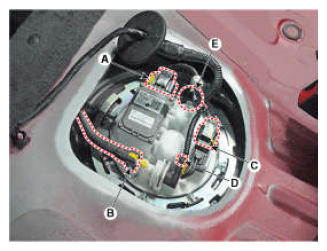

  4. Disconnect the fuel pump module connector (A).
  5. Disconnect the fuel feed tube quick connector (B).
  6. Disconnect the fuel tank pressure sensor connector (C).
  7. Disconnect the fuel pressure sensor connector (D).
  8. Disconnect the vapor tube quick connector (E).
    G12598593Courtesy of HYUNDAI MOTOR AMERICA
  9. Lift the vehicle and support the fuel tank with a jack.

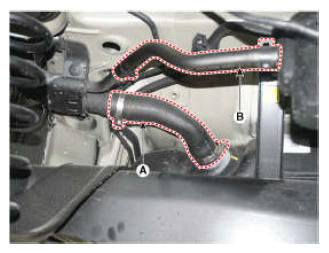

  10. Disconnect the fuel filler hose (A).
  11. Disconnect the ventilation hose (B).
    G12598594Courtesy of HYUNDAI MOTOR AMERICA

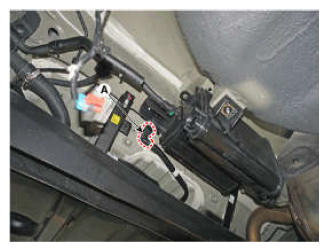

  12. Disconnect the vapor tube quick connector (A).
    G12598595Courtesy of HYUNDAI MOTOR AMERICA

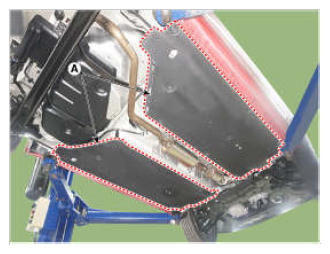

  13. Remove the under cover (A).
    G12598596Courtesy of HYUNDAI MOTOR AMERICA

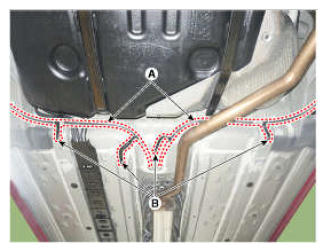

  14. Remove the brake line (A) bracket mounting bolts (B).
    G12598597Courtesy of HYUNDAI MOTOR AMERICA

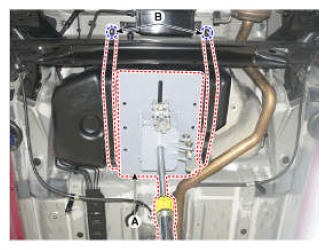

  15. Support the fuel tank with jack (A).
  16. Remove the fuel tank installation nut (B) and then loosen the fuel tank.
G12598598Courtesy of HYUNDAI MOTOR AMERICA
