Repair Procedures: Removal

  1. Release the residual pressure in fuel line.

    (Refer to Fuel Delivery System - "RELEASE RESIDUAL PRESSURE IN FUEL LINE ")

  2. Remove the rear seat.

    (Refer to Body - "REAR SEAT ASSEMBLY ")

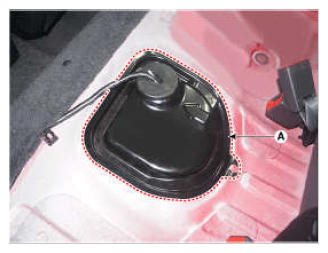

  3. Remove the fuel pump service cover (A).
    G12598599Courtesy of HYUNDAI MOTOR AMERICA

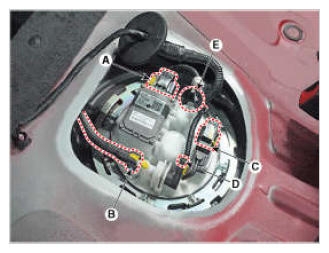

  4. Disconnect the fuel pump module connector (A).
  5. Disconnect the fuel feed tube quick connector (B).
  6. Disconnect the fuel tank pressure sensor connector (C).
  7. Disconnect the fuel pressure sensor connector (D).
  8. Disconnect the vapor tube quick connector (E).
    G12598600Courtesy of HYUNDAI MOTOR AMERICA

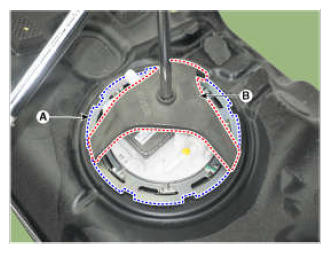

  9. Remove the locking ring (A) by using the special service tool (B) [No.: 09310-F3100].
NOTE:
  • When removing the plate cover, be careful not to damage the fuel tank and fuel pump.
  • When removing the plate cover, press the upper area with hand and rotate the wrench counter clockwise.

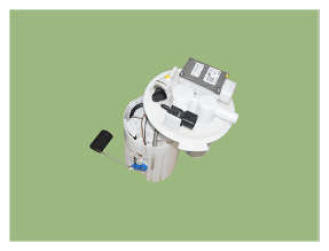

G12598601Courtesy of HYUNDAI MOTOR AMERICA
G12598602Courtesy of HYUNDAI MOTOR AMERICA
