Repair Procedures: Removal

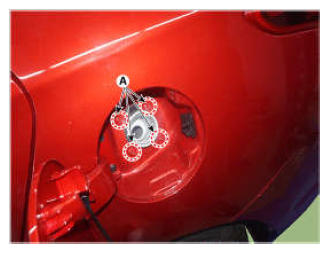

  1. Open the fuel filler door, and then remove the filler-neck assembly mounting screws (A).
    G12598617Courtesy of HYUNDAI MOTOR AMERICA

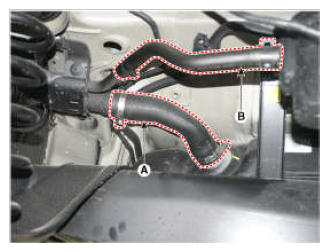

  2. Disconnect the fuel filler hose (A) and vapor hose (B).
    G12598618Courtesy of HYUNDAI MOTOR AMERICA
  3. Remove the filler-neck assembly from the vehicle after removing the bracket mounting bolt (A).
G12598619Courtesy of HYUNDAI MOTOR AMERICA
