Repair Procedures: Removal

  1. Turn the ignition switch OFF and disconnect the negative (-) battery cable.

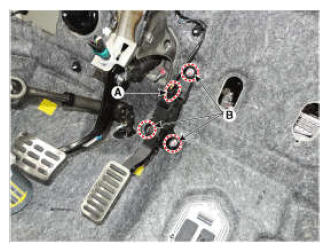

  2. Disconnect the accelerator position sensor connector (A).
  3. Remove the installation nuts (B), and then remove the accelerator pedal module.
G12598620Courtesy of HYUNDAI MOTOR AMERICA
