Repair Procedures: Inspection

  1. Turn ignition switch OFF and disconnect the negative (-) battery cable.
  2. Remove the console upper cover.

    (Refer to Body - "FLOOR CONSOLE ")

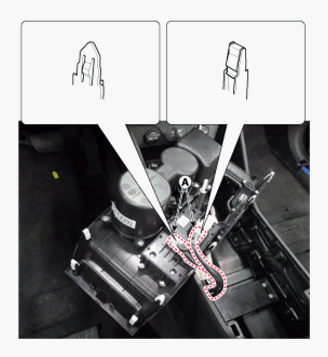

  3. Disconnect the connector (A).
    G12613773Courtesy of HYUNDAI MOTOR AMERICA

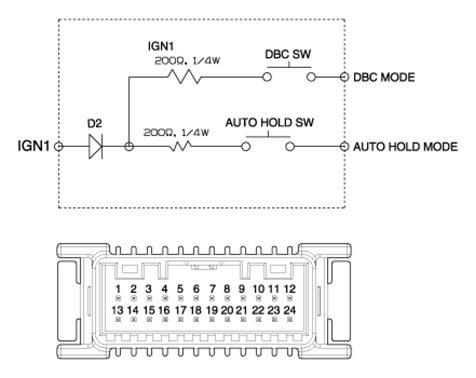

  4. Check the continuity between the switch terminals as the DBC switch is engaged.
    G12613774Courtesy of HYUNDAI MOTOR AMERICA
