Component Location

WARNING: This page is about a different car, the 2017 Hyundai Tucson. However, it is still accessible from the selected car via links, so may be relevant.

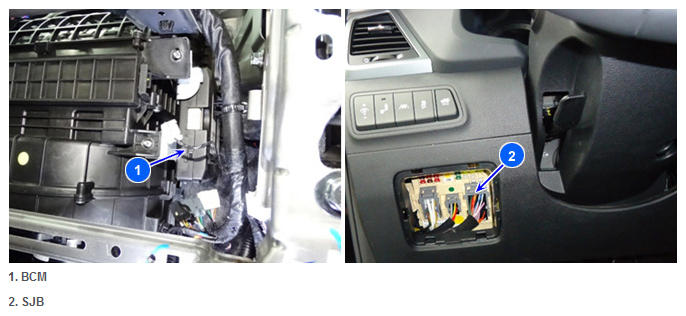

G12046306Courtesy of
NOTE: BCM: Body Control Module
SJB: Smart Junction Block
