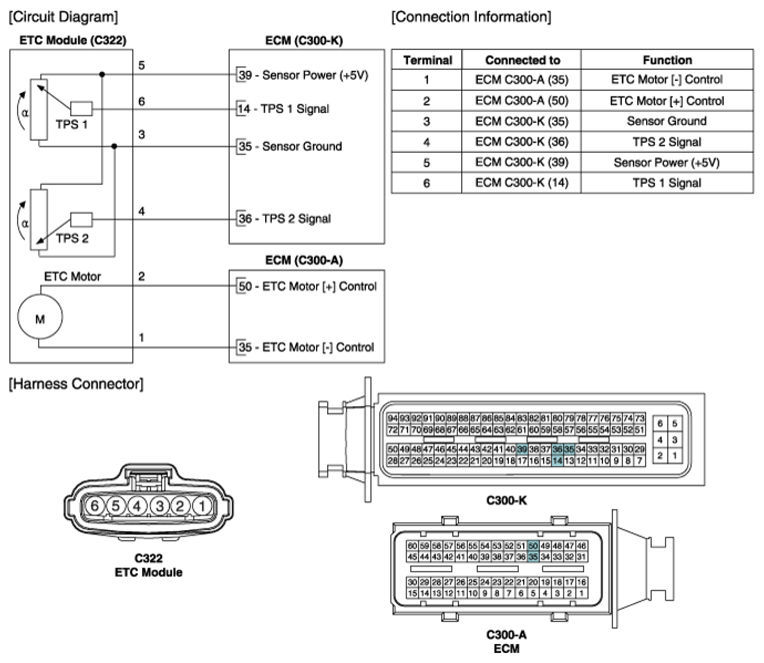

Home >> Hyundai >> 2018 >> Tucson Value, 4WD >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System - 1.6L >> ETC (Electronic Throttle Control) System >> Schematic Diagrams >> Circuit Diagram
