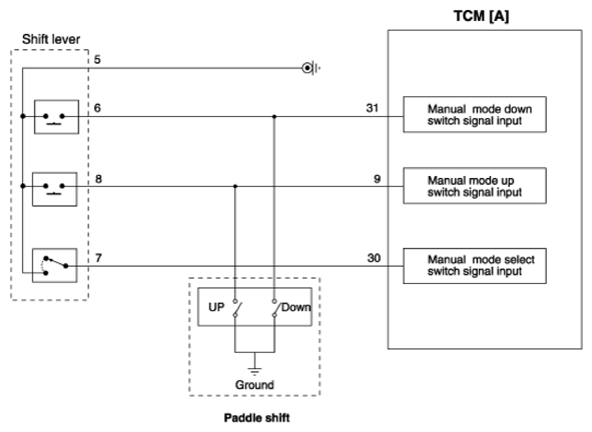

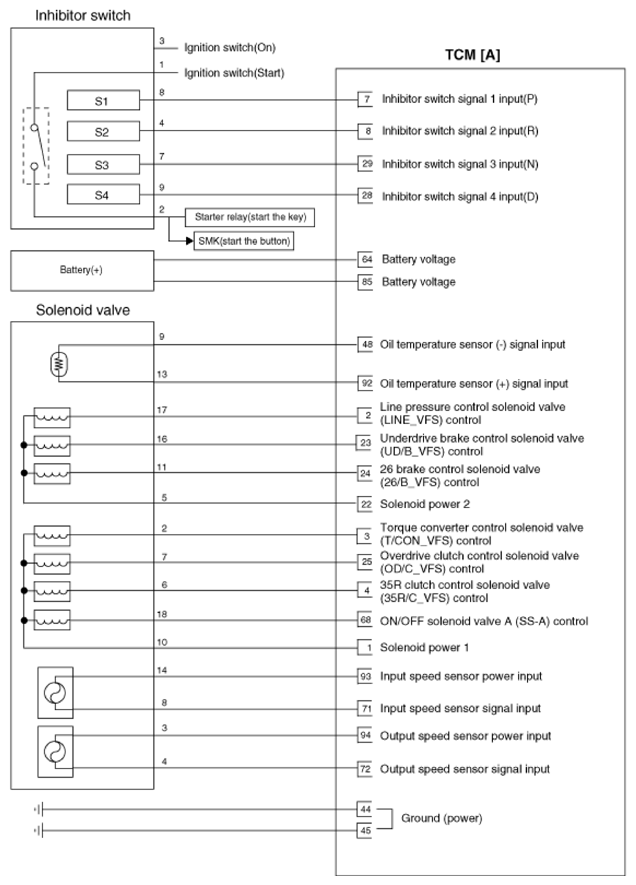

Home >> Hyundai >> 2018 >> Tucson Sport, FWD >> Repair and Diagnosis >> Transmission >> Transmission Control Systems >> Automatic Transaxle Control System - 2.4L >> Transaxle Control Module TCM >> Circuit Diagram
