Repair Procedures: Removal

  1. Turn the ignition switch OFF and disconnect the battery negative (-) terminal
  2. Lift the vehicle

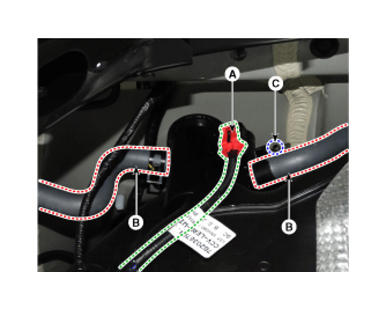

  3. Disconnect the canister close valve connector (A)
  4. Disconnect the ventilation hose (B)
  5. Remove the fuel tank air filter after removing the mounting nut (C).
    G12612839Courtesy of HYUNDAI MOTOR AMERICA

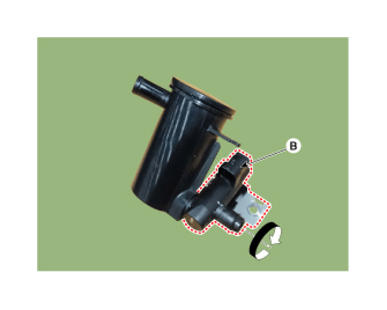

  6. Release the lever (A), and then separate the canister close valve (B) from the fuel tank air filter after rotating it in the direction of the arrow in the figure.
    G12612840Courtesy of HYUNDAI MOTOR AMERICA
    G12612841Courtesy of HYUNDAI MOTOR AMERICA
