Smart Key Unit

  1. Disconnect the negative (-) battery terminal.
  2. Remove the crash pad lower panel.

    (Refer to Body - "CRASH PAD LOWER PANEL ")

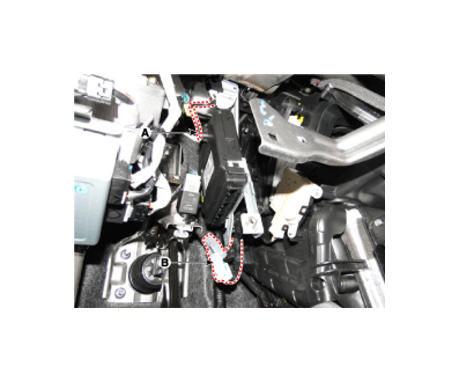

  3. Disconnect the antenna cable (A) and SMK unit connectors (B).
    G12614496Courtesy of HYUNDAI MOTOR AMERICA

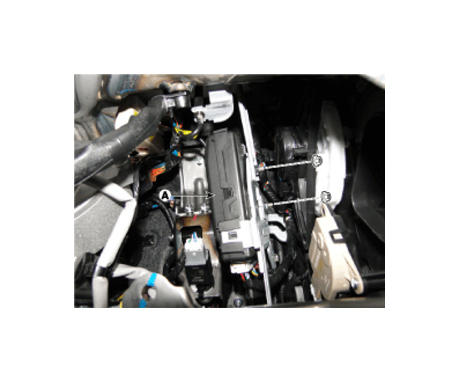

  4. Remove SMK unit (A) after loosening the mounting nuts.
    G12614497Courtesy of HYUNDAI MOTOR AMERICA
