Repair Procedures: Removal

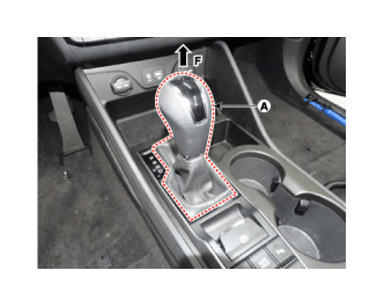

  1. Pull the knob (A) in the direction of "F" and remove the knob.
    G12612091Courtesy of HYUNDAI MOTOR AMERICA
  2. Remove the floor console assembly.

    (Refer to Body - "FLOOR CONSOLE ")

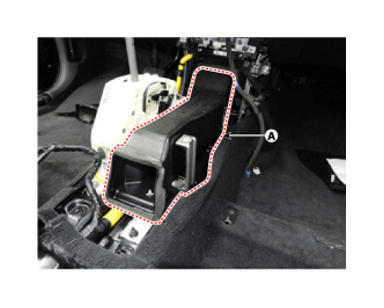

  3. Remove the air duct (A).
    G12612092Courtesy of HYUNDAI MOTOR AMERICA

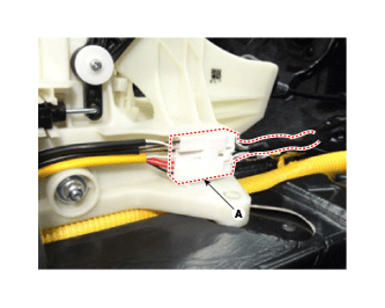

  4. Disconnect the connector (A) from the shift lever.
    G12612093Courtesy of HYUNDAI MOTOR AMERICA

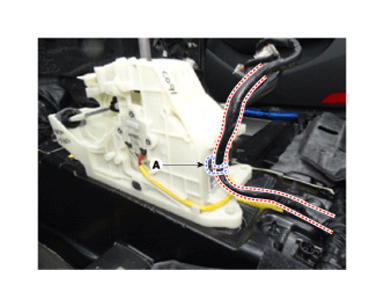

  5. Disconnect the fixing clip (A) of wiring.
    G12612094Courtesy of HYUNDAI MOTOR AMERICA

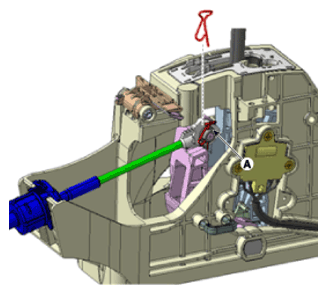

  6. Remove the snap pin (A).
    G12612095Courtesy of HYUNDAI MOTOR AMERICA

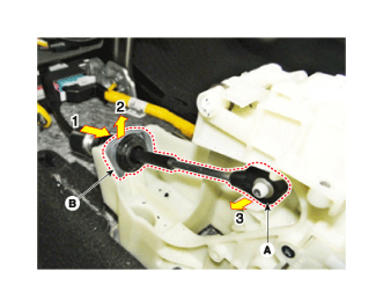

  7. Disconnect the control cable.
    1. Disconnect the cable holer (A) from the shift lever.
    2. Disconnect the cable bracket (B) from the shift lever after pushing the lock.
      G12612096Courtesy of HYUNDAI MOTOR AMERICA
  8. Remove the bolts and then shift lever assembly (A).

    Tightening torque:

    8.8 ~ 13.7 N.m (0.9 ~ 1.4 kgf.m, 6.5 ~ 10.1 lb-ft)

    G12612097Courtesy of HYUNDAI MOTOR AMERICA

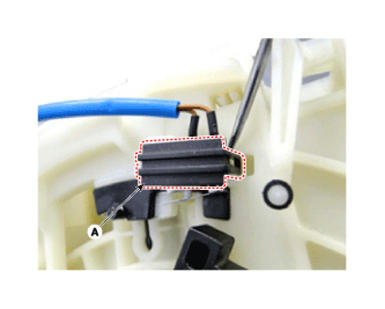

  9. Remove the P position switch mounting bracket (A).
    G12612098Courtesy of HYUNDAI MOTOR AMERICA

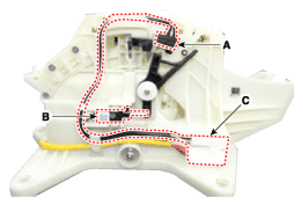

  10. Disconnect the P position switch (A) and shift lock solenoid (B)
  11. Disconnect the main connector (C) from the shift lever.
    G12612099Courtesy of HYUNDAI MOTOR AMERICA
  12. Disconnect the manual mode switch housing (A).
    G12612100Courtesy of HYUNDAI MOTOR AMERICA
  13. P position switch, shift lock solenoid, manual mode switch housing, main connector assembly (A).
    G12612101Courtesy of HYUNDAI MOTOR AMERICA
  14. Remove the mounting bracket (A) of terminals from the main connector.
    G12612102Courtesy of HYUNDAI MOTOR AMERICA
  15. Remove each terminals (F) of the P position switch (A), shift lock solenoid (B), manual mode switch housing (C) after released lock (E) from the main connector (D).
    CAUTION:
    • Record the location of the wiring colors before disconnecting the terminals.
    G12612103Courtesy of HYUNDAI MOTOR AMERICA
    G12612104Courtesy of HYUNDAI MOTOR AMERICA
    NOTE:
    • Connector information
    G12612105Courtesy of HYUNDAI MOTOR AMERICA
