Components Location

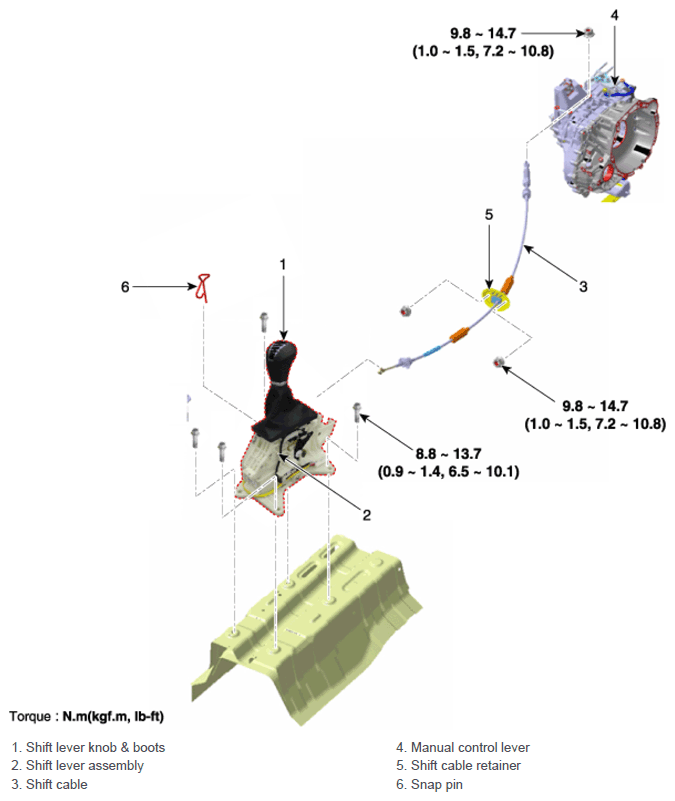

Fig 1: Shift Lever Components With Torque Specification
G12612088Courtesy of HYUNDAI MOTOR AMERICA
