Repair Procedures: Inspection

  1. Turn ignition switch OFF
  2. Remove the air duct.

    (Refer to Engine Mechanical System - "AIR CLEANER ")

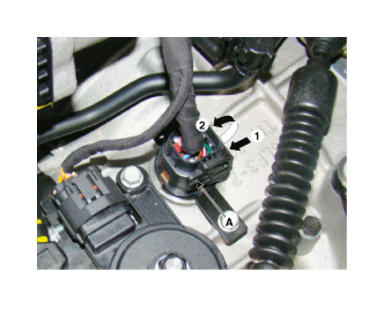

  3. Disconnect the solenoid valve connector(A).
    G12612005Courtesy of HYUNDAI MOTOR AMERICA
  4. Measure resistance between sensor signal terminal and sensor ground terminal
  5. Check that the resistance is within the specification.
