Home >> Hyundai >> 2018 >> Tucson SEL Plus, FWD >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Automatic Transaxle Control System - 2.0L >> Shift Cable >> Components and Components Location >> Components

Components and Components Location: Components

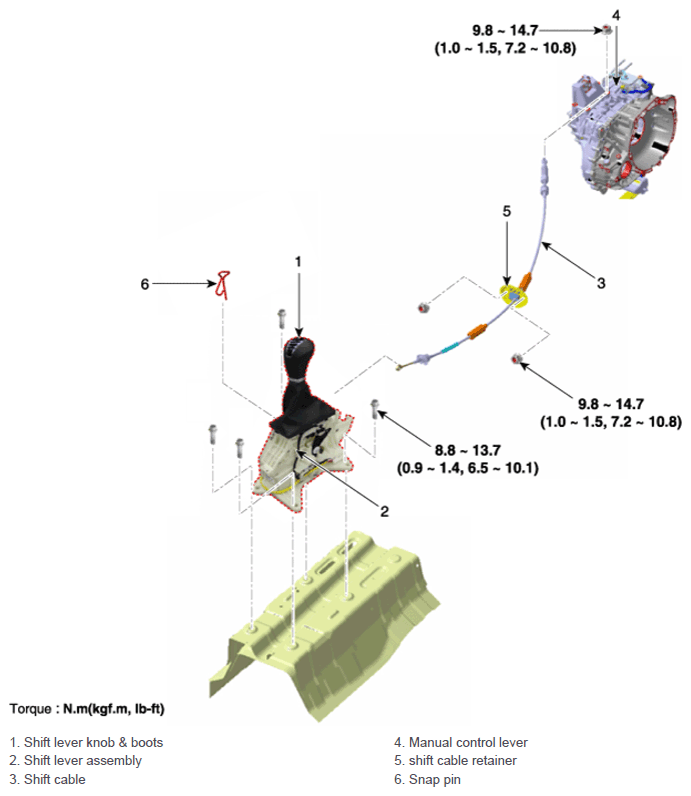

Fig 1: Shift Cable Components With Torque Specification

G12612106

Courtesy of HYUNDAI MOTOR AMERICA
