[Liftgate trim]

WARNING: This page is about a different car, the 2017 Hyundai Tucson. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

Put on gloves to prevent hand injuries.

NOTE:

When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
Take care not to scratch the body surface.

Remove the liftgate upper trim.
(Refer to Liftgate - "LIFTGATE TRIM ")
Remove the liftgate side trim.
(Refer to Liftgate - "LIFTGATE TRIM ")
Remove the liftgate inside handle caps (A).

Fig 1: Removing Liftgate Inside Handle Caps
Courtesy of HYUNDAI MOTOR AMERICA
Disconnect the connector (A) and then remove the power liftgate inner switch (B).

Fig 2: Removing Power Liftgate Inner Switch
Courtesy of HYUNDAI MOTOR AMERICA

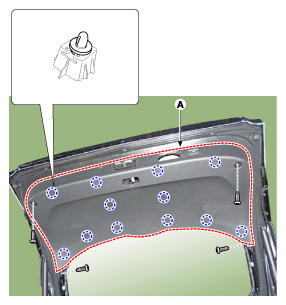

After loosening the mounting screws, remove the liftgate trim (A).

Fig 3: Removing Liftgate Trim Mounting Screws
Courtesy of HYUNDAI MOTOR AMERICA
Install in the reverse order of removal.

Information

Replace any damaged clips.
