Repair Procedures: Removal

  1. Release the residual pressure in fuel line.

    (Refer to Fuel Delivery System - "RELEASE RESIDUAL PRESSURE IN FUEL LINE ")

  2. Remove the rear seat.

    (Refer to Body - "REAR SEAT ASSEMBLY ")

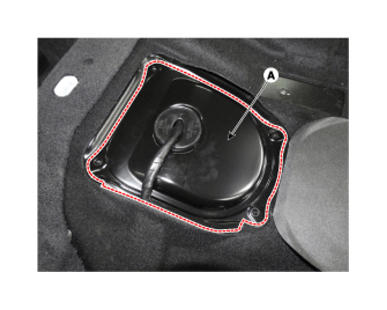

  3. Remove the fuel pump service cover (A).
    G12610994Courtesy of HYUNDAI MOTOR AMERICA

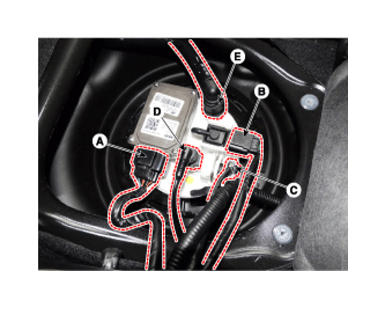

  4. Disconnect the fuel pump control module connector (A) and the fuel tank pressure sensor connector (B).
  5. Disconnect the fuel pressure sensor connector (C)
  6. Disconnect the fuel feed tube quick connector (D) and the vapor tube quick-connector (E).
    G12610995Courtesy of HYUNDAI MOTOR AMERICA

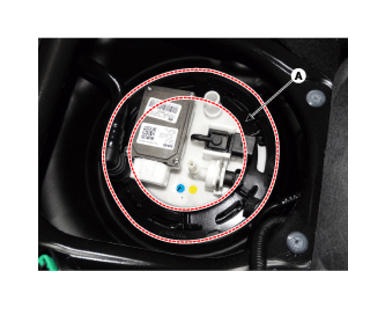

  7. Remove the locking ring (A) by using the special service tool [No.: 09310-B8100].
    G12610996Courtesy of HYUNDAI MOTOR AMERICA
    G12610997Courtesy of HYUNDAI MOTOR AMERICA
