Repair Procedures: Removal

  1. Remove the ignition key from the vehicle.
  2. Disconnect the battery negative cable and wait for at least three minutes before beginning work.
  3. Remove the floor console.

    (Refer to Body - "FLOOR CONSOLE ASSEMBLY ")

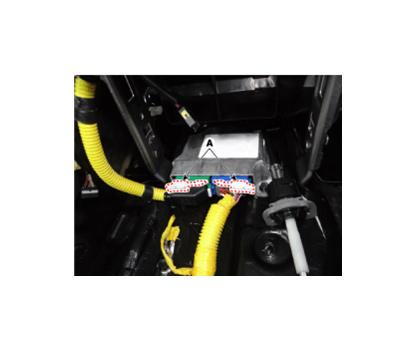

  4. Pull up the lock (A), of the SRSCM connector, then disconnect the connector.
    G12613533Courtesy of HYUNDAI MOTOR AMERICA

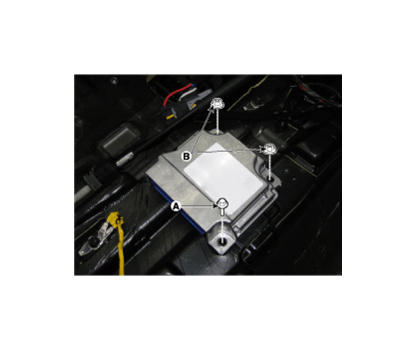

  5. Remove the SRSCM bolt (A) and nuts (B) from the SRSCM, then remove the SRSCM.
    G12613534Courtesy of HYUNDAI MOTOR AMERICA
