Repair Procedures: Disassembly

WARNING: This page is about a different variant/trim than selected.

Disconnect the M-terminal (A) on the magnet switch assembly (B).

Courtesy of HYUNDAI MOTOR AMERICA

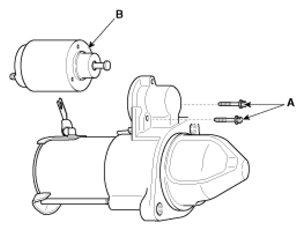

After loosening the screws (A), detach the magnet switch assembly (B).

Courtesy of HYUNDAI MOTOR AMERICA

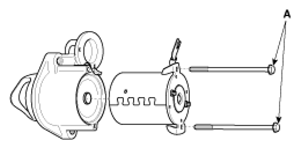

Loosen the through bolts (A).

Courtesy of HYUNDAI MOTOR AMERICA
Remove the brush holder assembly (A), yoke (B) and armature (C).

Courtesy of HYUNDAI MOTOR AMERICA
Remove the lever plate (B) and lever packing (A).

Courtesy of HYUNDAI MOTOR AMERICA
Remove the packing (A) and shield (B).

Courtesy of HYUNDAI MOTOR AMERICA
Disconnect the planet gear (A).

Courtesy of HYUNDAI MOTOR AMERICA
Disconnect the planet shaft assembly (or reducer assembly) (A) and lever (B).

Courtesy of HYUNDAI MOTOR AMERICA
Press the stopper (A) using a socket (B).

Courtesy of HYUNDAI MOTOR AMERICA
After removing the stop ring (A) using stop ring pliers (B).

Courtesy of HYUNDAI MOTOR AMERICA
Disconnect the stopper (A), overrunning clutch (B), internal gear (C), planet shaft (D) and/or gasket sheet (E).

Courtesy of HYUNDAI MOTOR AMERICA
Reassembly is the reverse of disassembly.
NOTE:
- Using a suitable pulling tool (A), pull the overrunning clutch stopper (C) over the stop ring (B).
Courtesy of HYUNDAI MOTOR AMERICA
