Repair Procedures: Removal
WARNING: This page is about a different variant/trim than selected.
- Turn the ignition switch OFF and disconnect the battery negative (-) terminal.

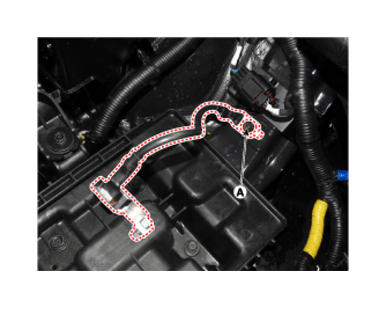

- Disconnect the battery sensor connector (A).
- Remove the battery.
(Refer to Engine Electrical System - "BATTERY ")

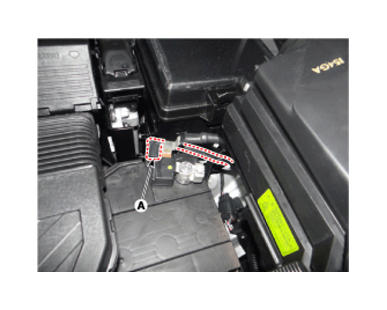

- Remove the battery negative (-) cable after removing the bolt (A).
Battery sensor cable mounting bolt:
26.5 - 35.3 N.m (2.7 - 3.6 kgf.m, 19.5 - 26.0 lb-ft)
