Repair Procedures: Removal
WARNING: This page is about a different variant/trim than selected.
- Turn ignition switch OFF and disconnect the battery negative (-) terminal
- Remove the engine room under cover.
(Refer to Engine and Transaxle Assembly - "ENGINE ROOM UNDER COVER ")

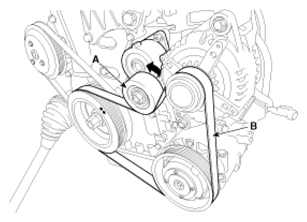

- For release the tension, turn the drive belt tensioner (A) counterclockwise then remove the drive belt (B).

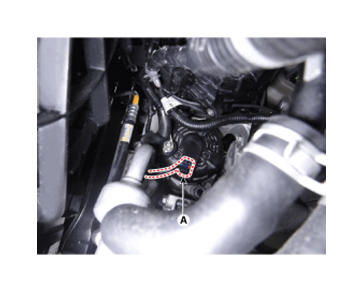

- Disconnect the alternator connector (A).

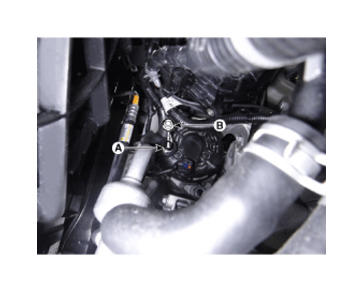

- Disconnect the alternator B-terminal cable (A) after loosening the mounting nut.
Alternator "B" terminal tightening nut:
9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 Ib.ft)

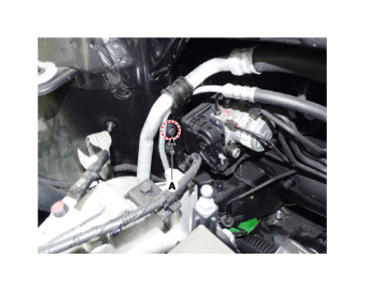

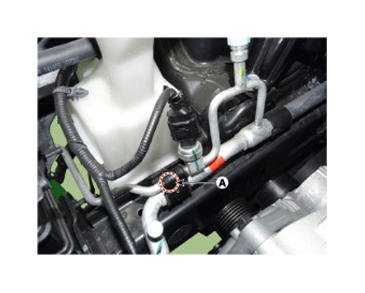

- Loosen the liquid tube assembly mounting bolt. (A-2ea)

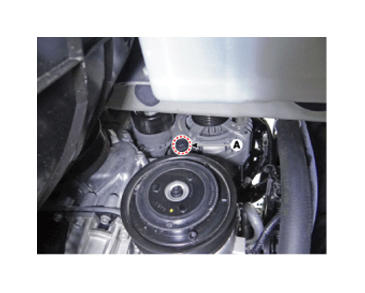

- Remove the alternator mounting lower bolt (A).
Alternator mounting lower bolt:
49.0 - 63.7 N.m (5.0 - 6.5 kgf.m, 36.2 - 47.0 lb.ft)

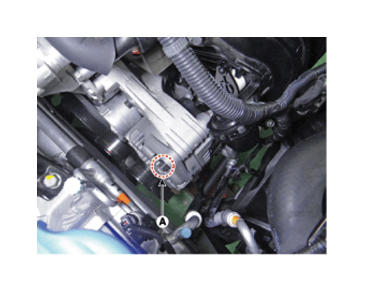

- Remove the alternator mounting upper bolt (A).
Alternator mounting upper bolt:
49.0 - 63.7 N.m (5.0 - 6.5 kgf.m, 36.2 - 47.0 lb.ft)
- Lift the vehicle

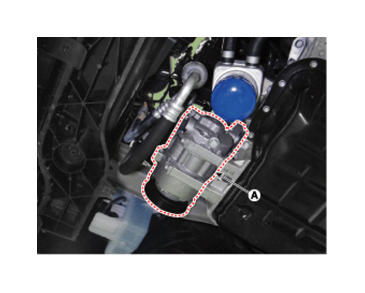

- Disconnect the compressor ECV connector, and then by loosening the mounting bolts, widen the gap between the compressor (A) from the engine to remove the alternator.

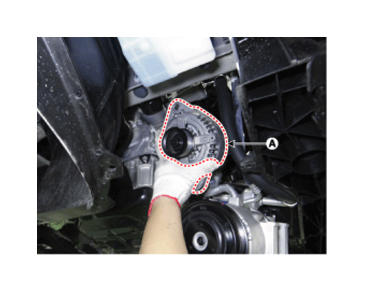

- Remove the alternator (A).
