Repair Procedures: Inspection
WARNING: This page is about a different variant/trim than selected.
- Turn ignition switch OFF and disconnect the negative (-) battery cable.
- Remove the fuse box cover.

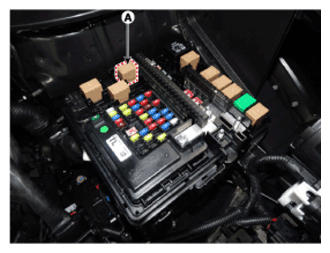

- Remove the starter relay (A).
- Using an ohmmeter, check that there is continuity between each terminal.
Terminal Continuity 30 - 87 NO 85 - 86 YES - Apply 12V to terminal 85 and ground to terminal 86.
Check for continuity between terminals 30 and 87.
- If there is no continuity, replace the starter relay.
- Install the starter relay.
- Install the fuse box cover.
