[Gamma Engine]

WARNING: This page is about a different car, the 2017 Hyundai Tucson. However, it is still accessible from the selected car via links, so may be relevant.

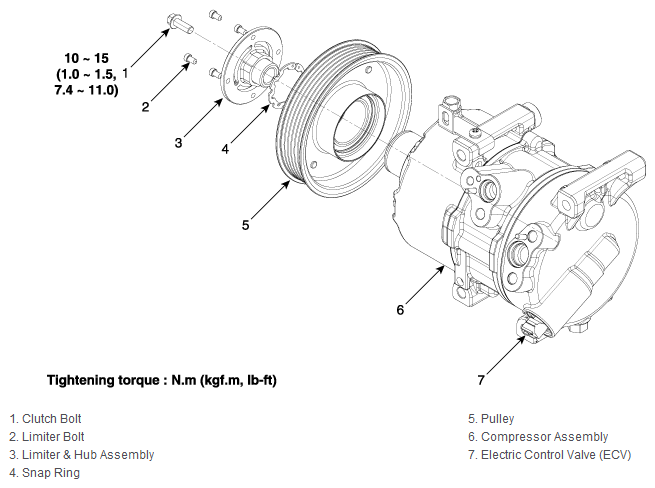

Fig 1: Compressor Components With Torque Specification (Gamma Engine)
G12043353Courtesy of HYUNDAI MOTOR AMERICA
