Repair Procedures: Replacement

WARNING: This page is about a different car, the 2017 Hyundai Tucson. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative (-) battery terminal.
  2. Remove the ECM Mirror cover (A).
    Fig 1: Removing ECM Mirror Cover
    G12043412Courtesy of HYUNDAI MOTOR AMERICA

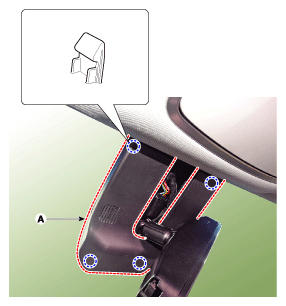

  3. Remove the rain sensor cover (A).
    Fig 2: Removing Rain Sensor Cover
    G12043413Courtesy of HYUNDAI MOTOR AMERICA
  4. Disconnect the connector (A) and then remove the auto logging sensor (B).
    Fig 3: Removing Auto Logging Sensor
    G12043414Courtesy of HYUNDAI MOTOR AMERICA
  5. Install in the reverse order of removal.
