Repair Procedures: Inspection
WARNING: This page is about a different car, the 2017 Hyundai Tucson. However, it is still accessible from the selected car via links, so may be relevant.

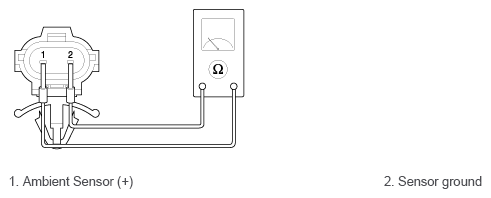

- Check the resistance of the ambient temperature sensor between terminals 1 and 2 whether it changes by changing the ambient temperature.
Specification
| Ambient temperature [°C(°F)] | Resistance between terminal 1 and 2 (kΩ) |
|---|---|
| -10 (14) | 164.2 |
| 0 (32) | 97.5 |
| 10 (50) | 59.6 |
| 20 (68) | 37.46 |
