Repair Procedures: Inspection

WARNING: This page is about a different car, the 2017 Hyundai Tucson. However, it is still accessible from the selected car via links, so may be relevant.

Remove the overhead console lamp assembly and check for continuity between terminals. If the continuity is not as specified, replace the map lamp switch.

Fig 1: Locating Overhead Console Lamp Connector Terminals

Courtesy of HYUNDAI MOTOR AMERICA

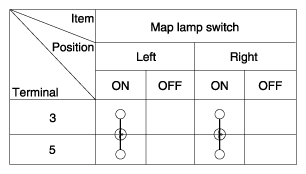

Fig 2: Overhead Console Lamp Connector Terminals Continuity Chart

Courtesy of HYUNDAI MOTOR AMERICA
