Repair Procedures: Replacement

WARNING: This page is about a different car, the 2017 Hyundai Tucson. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

Put on gloves to prevent hand injuries.

NOTE:

When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
Take care not to bend or scratch the trim and panels.

Remove the floor console assembly.
(Refer to Floor Console - "FLOOR CONSOLE ASSEMBLY ")
Loosen the rear console mounting screws.

Fig 1: Loosening Rear Console Mounting Screws
Courtesy of HYUNDAI MOTOR AMERICA

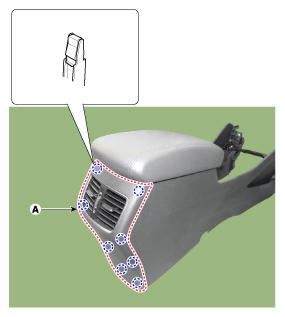

Using a screwdriver or remover, remove the rear console cover (A).

Fig 2: Removing Rear Console Cover
Courtesy of HYUNDAI MOTOR AMERICA
Install in the reverse order of removal.

Information

Make sure the connector is connected properly.
Replace any damaged clips (or pin-type retainers).
