Repair Procedures: Replacement

WARNING: This page is about a different car, the 2017 Hyundai Tucson. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

Put on gloves to prevent hand injuries.

NOTE:

When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
Take care not to bend or scratch the trim and panels.

To remove the gear knob & gear boots (A) pull both of it up.

Fig 1: Removing Gear Knob & Gear Boots
Courtesy of HYUNDAI MOTOR AMERICA

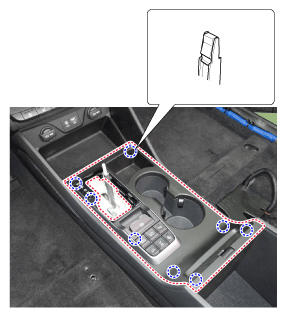

Using a screwdriver or remover, remove the floor console upper cover (A).

Fig 2: Removing Floor Console Upper Cover
Courtesy of HYUNDAI MOTOR AMERICA
Disconnect the connectors (A) from the floor console upper cover.

Fig 3: Disconnecting Connectors From Floor Console Upper Cover
Courtesy of HYUNDAI MOTOR AMERICA

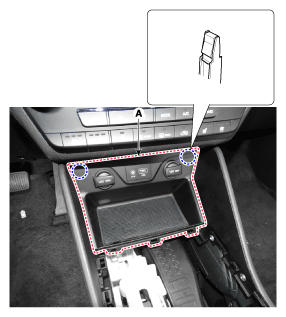

Separate the floor console tray assembly (A).

Fig 4: Separating Floor Console Tray Assembly
Courtesy of HYUNDAI MOTOR AMERICA
Disconnect the connectors (A) from the floor console tray.

Fig 5: Disconnecting Connectors From Floor Console Tray
Courtesy of HYUNDAI MOTOR AMERICA

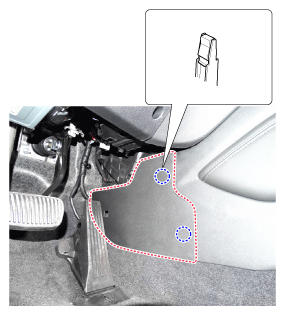

Remove the console side cover (A) by pushing it rearward.

Fig 6: Removing Console Side Cover
Courtesy of HYUNDAI MOTOR AMERICA
Remove the console armrest mat (A).

Fig 7: Removing Console Armrest Mat
Courtesy of HYUNDAI MOTOR AMERICA

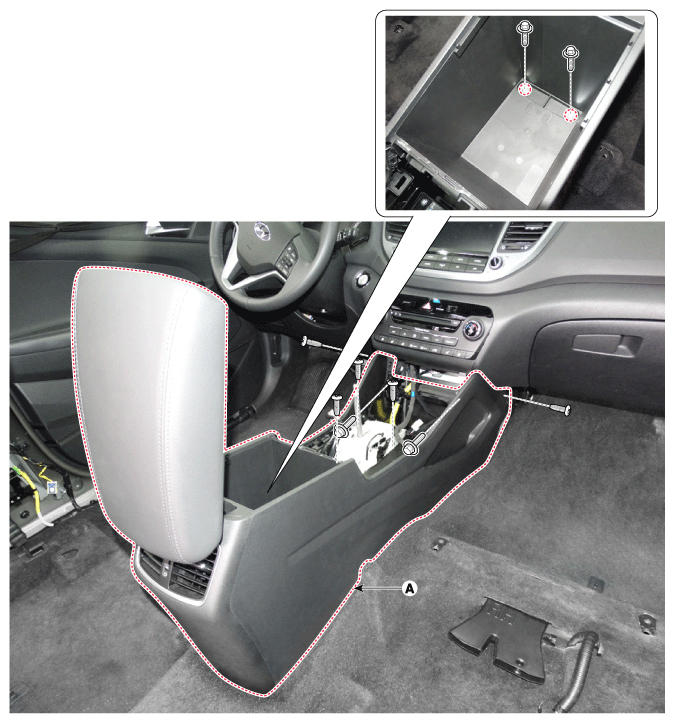

After loosening the mounting screws and bolts, remove the floor console assembly (A).

Fig 8: Removing Floor Console Assembly
Courtesy of HYUNDAI MOTOR AMERICA
Install in the reverse order of removal.

Information

Make sure the connector is connected properly.
Replace any damaged clips (or pin-type retainers).
