Repair Procedures: Replacement

WARNING: This page is about a different car, the 2017 Hyundai Tucson. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

Put on gloves to prevent hand injuries.

NOTE:

When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
Take care not to bend or scratch the trim and panels.

Remove the floor console assembly.
(Refer to Floor Console - "FLOOR CONSOLE ASSEMBLY ")
Remove the rear console cover.
(Refer to Floor Console - "REAR CONSOLE COVER ")
Loosen the console armrest mounting screws.

Fig 1: Loosening Console Armrest Mounting Screws
Courtesy of HYUNDAI MOTOR AMERICA

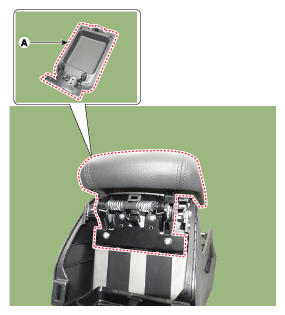

Loosen the mounting screws and remove the console armrest (A).

Fig 2: Removing Console Armrest
Courtesy of HYUNDAI MOTOR AMERICA
Install in the reverse order of removal.

Information

Replace any damaged clips (or pin-type retainers).
