Repair Procedures: Removal

WARNING: This page is about a different car, the 2017 Hyundai Tucson. However, it is still accessible from the selected car via links, so may be relevant.
  1. Loosen the bolt (A) and then disconnect the universal joint assembly from the pinion of the steering gear box.

    Tightening torque:

    32.4 ~ 37.3 N.m (3.3 ~ 3.8 kgf.m, 23.9 ~ 27.5 lb-ft)

    Fig 1: Disconnecting Universal Joint Assembly From Pinion Of Steering Gear Box
    G12041122Courtesy of HYUNDAI MOTOR AMERICA
    NOTE:
    • Lock the steering wheel in the straight ahead position to prevent the damage of the clock spring inner cable when you handle the steering wheel.
    • Do not reuse the bolt.
  2. Remove the front wheel and tire (A) from front hub.

    Tightening torque:

    88.2 ~ 107.8 N.m (9.0 ~ 11.0 kgf.m, 65.0 ~ 79.5 lb-ft)

    Fig 2: Removing Front Wheel And Tire From Front Hub
    G12041123Courtesy of HYUNDAI MOTOR AMERICA
    NOTE: Be careful not to damage to the hub bolts when removing the front wheel and tire (A).
  3. Loosen the bolt & nut after removing the pin (A).

    Tightening torque:

    98.1 ~ 117.7 N.m (10.0 ~ 12.0 kgf.m, 72.3 ~ 86.6 lb-ft)

    Fig 3: Removing Pin
    G12041124Courtesy of HYUNDAI MOTOR AMERICA
    NOTE: Do not use a bar to release the lower arm from the knuckle.
  4. Remove the lower arm from the knuckle by using the SST (09568-4R100).
    1. Install the support bolt (A) from bolt hole.
    2. Install the support body (B) from front axle.
    3. Tighten the bolt (C).
    Fig 4: Installing Support Bolt From Bolt Hole
    G12041125Courtesy of HYUNDAI MOTOR AMERICA
    Fig 5: Installing Support Body From Front Axle
    G12041126Courtesy of HYUNDAI MOTOR AMERICA
  5. Remove the tie rod end ball joint from the knuckle.
    1. Remove the split pin (A).
    2. Loosen the nut and then remove the ball joint (B).

    Tightening torque:

    34.3 ~ 44.1 N.m (3.5 ~ 4.5 kgf.m, 25.3 ~ 32.5 lb-ft)

    Fig 6: Removing Split Pin
    G12041127Courtesy of HYUNDAI MOTOR AMERICA
  6. Disconnect the stabilizer link (B) with the front strut assembly (A) after loosening the nut.

    Tightening torque:

    98.1 ~ 117.7 N.m (10.0 ~ 12.0 kgf.m, 72.3 ~ 86.8 lb-ft)

    Fig 7: Disconnecting Stabilizer Link With Front Strut Assembly
    G12041128Courtesy of HYUNDAI MOTOR AMERICA
  7. Remove the engine room under cover (A).

    Tightening torque:

    7.8 ~ 11.7 N.m (0.8 ~ 1.2 kgf.m, 5.7 ~ 8.6 lb-ft)

    Fig 8: Removing Engine Room Under Cover
    G12041129Courtesy of HYUNDAI MOTOR AMERICA
  8. Remove the engine room cover.

    Tightening torque:

    7.8 ~ 11.7 N.m (0.8 ~ 1.2 kgf.m, 5.7 ~ 8.6 lb-ft)

    Fig 9: Removing Engine Room Cover
    G12041130Courtesy of HYUNDAI MOTOR AMERICA
  9. Remove the roll rod stopper bolt (A).

    Tightening torque

    Bolt (C):

    49.0 ~ 63.7 N.m (5.0 ~ 6.5 kgf.m, 36.2 ~ 47.0 lb-ft)

    Bolt (B):

    107.9 ~ 127.5 N.m (11.0 ~ 13.0 kgf.m, 79.6 ~ 94.0 lb-ft)

    Fig 10: Removing Roll Rod Stopper Bolt
    G12041131Courtesy of HYUNDAI MOTOR AMERICA
  10. Disconnect the muffler rubber hanger (A).
    Fig 11: Disconnecting Muffler Rubber Hanger
    G12041132Courtesy of HYUNDAI MOTOR AMERICA
  11. Loosen the bolts & nuts and then remove the sub frame.

    Tightening torque

    Bolts:

    (A)  44.1 ~ 58.8 N.m (4.5 ~ 6.0 kgf.m, 32.5 ~ 43.4 lb-ft)

    (B)  176.5~196.1 N.m (18.0~20.0 kgf.m, 130.2~144.7 lb-ft)

    Nuts:

    (C)  44.1 ~ 58.8 N.m (4.5 ~ 6.0 kgf.m, 32.5 ~ 43.4 lb-ft)

    (D)  176.5~196.1 N.m (18.0~20.0 kgf.m, 130.2~144.7 lb-ft)

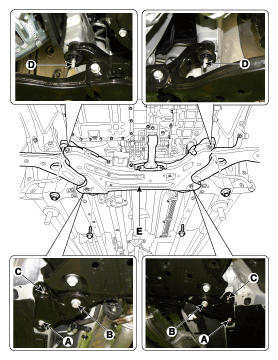

    Fig 12: Removing Sub Frame
    G12041133Courtesy of HYUNDAI MOTOR AMERICA
    NOTE: Set up the transmission jack under the lower arm in order to remove the shock absorber in no-load condition.
    Fig 13: Setting Up Transmission Jack Under Lower Arm
    G12041134Courtesy of HYUNDAI MOTOR AMERICA
  12. Loosen the bolt and then remove the protector (A).

    Tightening torque:

    7.8 ~ 11.7 N.m (0.8 ~ 1.2 kgf.m, 5.7 ~ 8.6 lb-ft)

    Fig 14: Removing Protector
    G12041135Courtesy of HYUNDAI MOTOR AMERICA
  13. Loosen the mounting bolt and then remove the stabilizer bar from the sub frame.

    Tightening torque:

    49.0 ~ 63.7 N.m (5.0 ~ 6.5 kgf.m, 36.2 ~ 47.0 lb-ft)

    Fig 15: Removing Stabilizer Bar From Sub Frame
    G12041136Courtesy of HYUNDAI MOTOR AMERICA
  14. Remove the steering gearbox from the cross member by loosening the mounting bolt.

    Tightening torque:

    88.2 ~ 107.8 N.m (9.0 ~ 11.0 kgf.m, 65.0 ~ 79.5 lb-ft)

    Fig 16: Removing Steering Gearbox From Cross Member
    G12041137Courtesy of HYUNDAI MOTOR AMERICA
  15. Installation is the reverse of removal.
  16. Check the wheel Alignment.

(Refer to Tires/Wheels - "ALIGNMENT ")
