Repair Procedures: Replacement

CAUTION: Put on gloves to prevent hand injuries.

NOTE:

When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
Take care not to bend or scratch the trim and panels.

Remove the front seat assembly.
(Refer to Front Seat - "FRONT SEAT ASSEMBLY ")

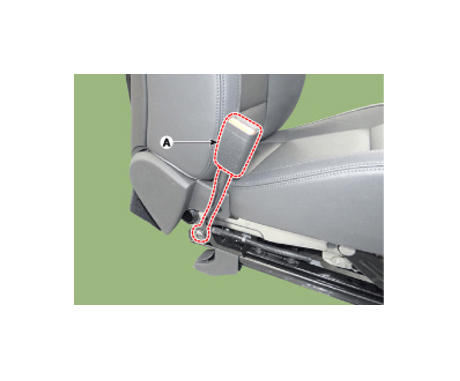

Loosen the mounting bolt and remove the front seat belt buckle (A).

Courtesy of HYUNDAI MOTOR AMERICA

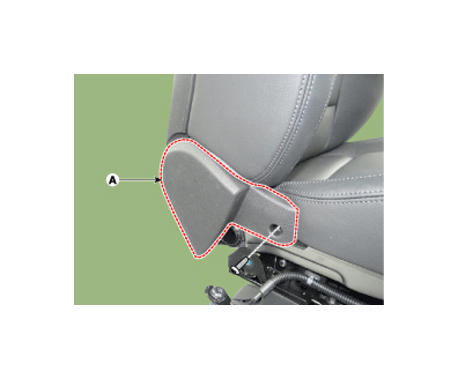

Loosen the screws and remove the front seat shield inner cover (A).

Courtesy of HYUNDAI MOTOR AMERICA
Install in the reverse order of removal.
Information
- Replace any damaged clips (or pin-type retainers).
