Repair Procedures: Removal

  1. Turn the ignition switch OFF and disconnect the battery negative (-) cable
  2. Lift the vehicle

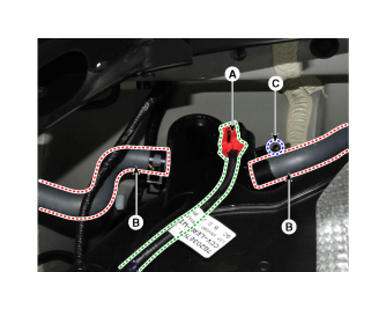

  3. Disconnect the canister close valve connector (A)
  4. Disconnect the ventilation hose (B)
  5. Remove the fuel tank air filter after removing the mounting nut (C).
    G12610955Courtesy of HYUNDAI MOTOR AMERICA

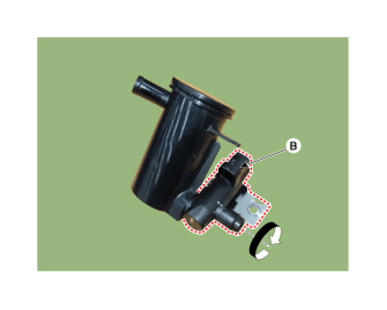

  6. Release the lever (A), and then separate the canister close valve (B) from the fuel tank air filter after rotating it in the direction of the arrow in the figure.
    G12610956Courtesy of HYUNDAI MOTOR AMERICA
    G12610957Courtesy of HYUNDAI MOTOR AMERICA
