Repair Procedures: Replacement: Notes

Gasoline 2.0 GDI

[Right side]

1. Remove the driveshaft assembly. (RH side)

   (Refer to Driveshaft and axle - "FRONT DRIVESHAFT ")

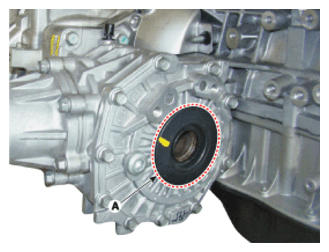

2. Remove the dust cover (A).

   Courtesy of HYUNDAI MOTOR AMERICA

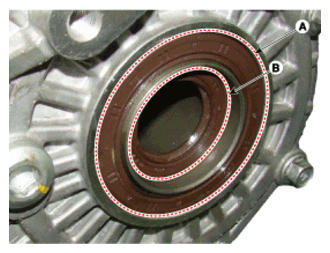

3. Remove the oil seal (A, B).

   Courtesy of HYUNDAI MOTOR AMERICA

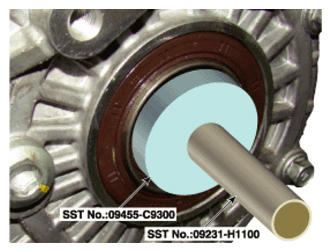

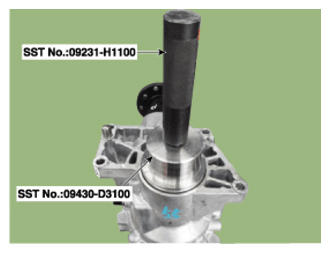

4. Install the oil seal with special service tools.

   Courtesy of HYUNDAI MOTOR AMERICA

   Courtesy of HYUNDAI MOTOR AMERICA

5. Install the new dust cover (A).

   Courtesy of HYUNDAI MOTOR AMERICA

6. Add to transfer fluid.

   (Refer to 4 Wheel Drive System - "Transfer Fluid ")

7. Install the drive shaft assembly. (RH side)

   (Refer to Driveshaft and axle - "FRONT DRIVESHAFT ")

[Left side]

1. Remove the transfer assembly from the transaxle assembly.

   (Refer to Transfer Assembly - "Front Wheel Transfer Assembly ")

2. Remove the oil seal (A).

   Courtesy of HYUNDAI MOTOR AMERICA

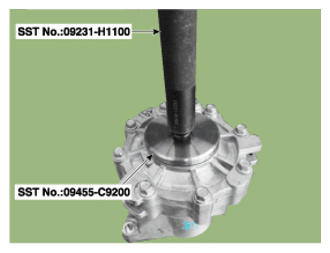

3. Install the oil seal with special service tools.

   Courtesy of HYUNDAI MOTOR AMERICA

4. Add to transfer fluid.

   (Refer to 4 Wheel Drive System - "Transfer Fluid ")

5. Install the transfer assembly.

   (Refer to 4 Wheel Drive System - "Front Wheel Transfer Assembly ")
