Repair Procedures: Replacement
- Prior to replacing the 4WD ECU, check the 4WD ECU's clutch learning with the GDS tool.
(Refer to 4WD Control System - "Adjustment ")
- Disconnect the battery negative cable from the battery
- Remove the luggage side trim.
(Refer to Body - "LUGGAGE SIDE TRIM ")

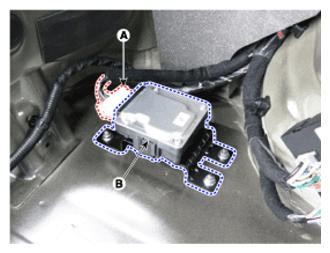

- Disconnect the 4WD ECU connector (A).
- Loosen the nuts and then remove the 4WD ECU(B).
Tightening torque:
9.8 ~ 11.8 N.m (1.0 ~ 1.2 kgf.m, 7.2 ~ 8.7 lb-ft)
