Home >> Hyundai >> 2018 >> Tucson Limited, FWD >> Repair and Diagnosis >> Transmission >> Transmission Control Systems >> Dual Clutch Transmission Control System - 1.6L >> Input Shaft Speed Sensor 2 >> Components and Components Location >> Components

Components and Components Location: Components

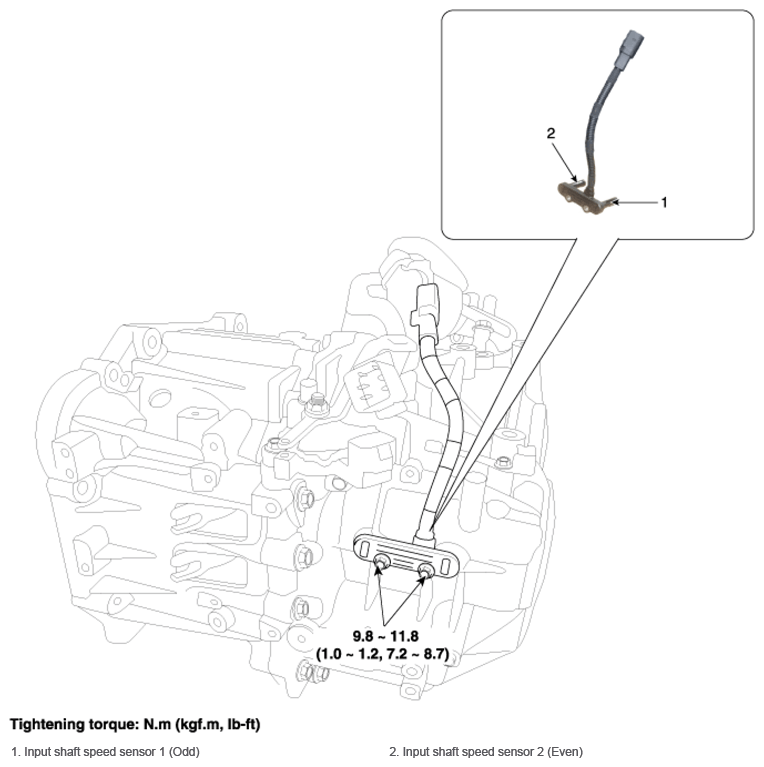

Fig 1: Input Shaft Speed Sensor 2 Components With Torque Specification

G12609271

Courtesy of HYUNDAI MOTOR AMERICA
